Voice Recording Board Sound Module On-Board Microphone ISD1820

£6.99

3 in stock

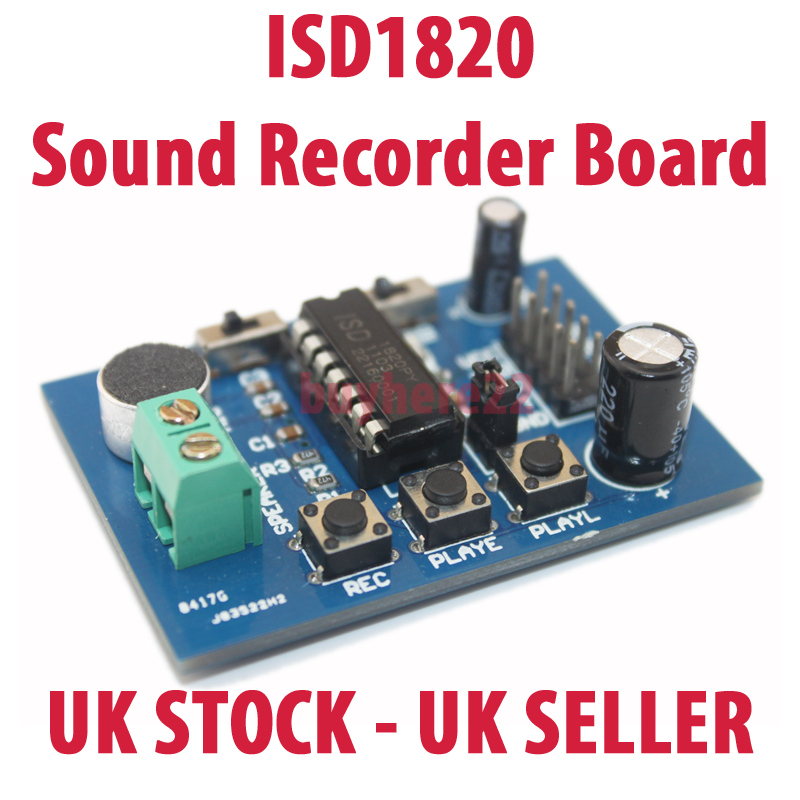

The ISD1820 Sound Recorder board is a high quality voice recording board provided with an on-board Microphone and terminals for connecting to an external speaker, as well as push-buttons to record and play. It can record and play back up to 16-seconds of audio.

The board has several switches:

  • Repeat: the Jumper Link (found on the top left column of pins). Board labelled “PLAYE” is the Repeat function. If the link is on, then the current recorded voice clip will be played repeatedly. If it is off, the clip is played once. Please note that there is a PCB print error, the PLAYE labelled on the left is the repeat function. The PLAYE labelled on the right is the Play edge activated.function.
  • Feed Through: the Jumper Link (found on the bottom left column of pins) Board labelled “FT” is the Feed Through function. If the link is on, then the signal from the microphone is automatically fed straight through into the speaker (through the automatic gain control, filtering and speaker driver circuit). If it is off, the audio is recorded for playback as normal.
  • Record: the push button labelled “REC” is the Record button. When pressed, the device records. The button must be held down for the duration of the recording.
  • Play (edge activated): the push button labelled “PLAYE” is the Play (edge-activated) button. When this button is pressed, the recorded sound will start to play. If the button is released before playback is finished, the clip will continue to play.
  • Play (level activated): the push button labelled “PLAYL” is the Play (level-activated) button. When pressed, the recorded sound will play. If the button is released the sound will stop, and if the end of the recorded sound is reached, the sound will stop.
  • The working voltage: 5V

All of the useful signals from the chip are also provided as a 10-pin header on the board and are clearly labelled – making the board ideal for easy control from a microprocessor such as a PIC or Arduino.
